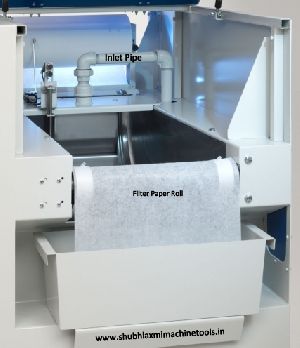

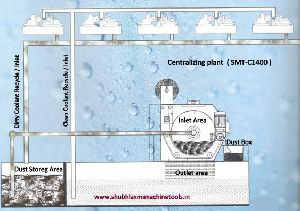

The principle of filtration of Compact Band coolant filter is by gravity and hydrostatic head, this combination offers the required pressure for coolant to pass through the filter media. A continuous honey comb chain is positioned tangentially to the disc wheels at the bottom with the help of shafts and sprockets. The rear shaft is mounted with the help of springs, which holds the Honey comb chain perfectly tangential to the discs with the help of spring tension. The front shaft is connected to a speed reducer to drive the Honey comb chain belt. The filter media is inserted between discs and Honey comb belt. This form the leak proof through where filtration takes place. The contaminated fluid enter the Shubh laxmi machine tools compact band filter from the inlet provided at the side. The contaminated fluid enters the trough with steady low velocity to avoid turbulence. The coolant further passes through the filter media by gravity. When the filter media gets clogged by contaminates the coolant level rises and actuates the float switch, which in-turn moves the Honey Comb chain belt and pulls fresh filter paper from the roll automatically. When the level of the coolant goes down the float switch stops the geared motor. Shubh laxmi machine tools compact band filters are suitable for all types of Grinding Machines, Honing Machines, Machining centers and Rolling Mills etc. Compact band filters are available from 100 LPM to 1000 LPM capacities.
No consumables required.
Dry cake discharge

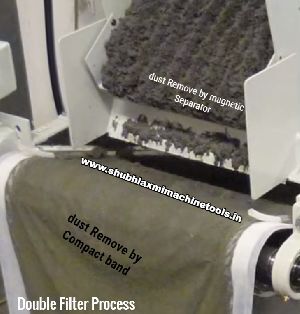

Excellent efficacy even for separating materials having weak magnetic properties, such as carbide and scale.
Superior contamination removal means improved surface finish, increased life of grinding wheel, reduced dressing frequency, increased life of the fluid.
